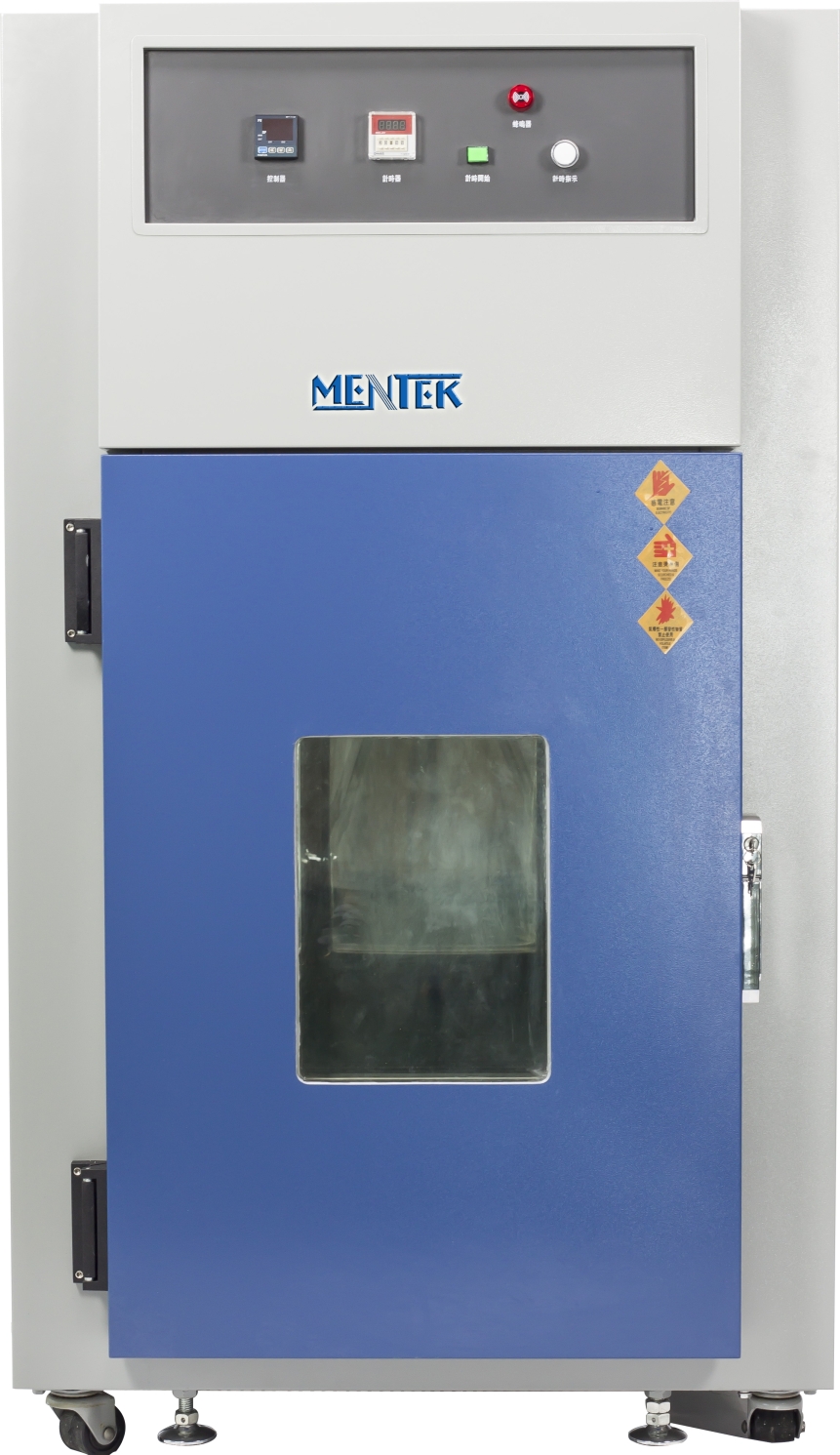

High temperature chamber
Product Usage
●High temperature test chamber is an essential test equipment for aviation, automobile, home appliance and scientific research. It is used to test and determine the cursive and performance of electrical, electronic and other products and materials under high temperature or constant temperature environment.

Technical Index of Precision High Temperature Test Chamber
Model MHG-125 MHG-270 MHG-600 MHG-1000
Test box dimensions
W * H * D(cm)
50*50*50 60*90*50 100*1000*60 100*1000*100
Carton size
W * H * D(cm)
70*125*160 800*165*160 125*185*75 125*180*115
Temperature RT﹢10℃~250℃
Performance Control precision ±0.5℃
In - box uniformity ± 1.5 ° C below 100 ° C and 2.5 ° C above 100 ° C
Resolution accuracy 0.1℃
Heating time 60min
Material Shell High - strength cold - rolled steel plate double - sided powder baking
Inner wall SUS#201 Stainless steel 2B panel
Insulation Materials Glass fiber cotton
System Circulation fan Longer sleeves, high temperature and high efficiency motor + centrifugal fan
Heater Electric wire wire accelerator
Control method PID control + SSR
Power supply AC1∮220V60/50Hz AC3∮380V60/50Hz
Electric power(k.w.) 6 9 12 12
Process Profile
Structure technology
1.Company hardware equipment Imports of German laser laser machine 1; Title of the AMADA AIRS-255NT punching and a Taiwan; Germany for all types of carbon dioxide welding machine and argon welding machine more than 10 Autodrsk inventor 3D graphics software, 3D sheet metal demolition and design of virtual assembly.
2.Shell made of high quality galvanized steel, electrostatic powder coating to be paint;
3.The inner box is made of imported SUS # 304 stainless steel, with full welding process to prevent leakage and penetration of high temperature and high humidity air inside the box; inner liner fillet design of inner box can better discharge condensate of side wall.

2.Shell made of high quality galvanized steel, electrostatic powder coating to be paint;
3.The inner box is made of imported SUS # 304 stainless steel, with full welding process to prevent leakage and penetration of high temperature and high humidity air inside the box; inner liner fillet design of inner box can better discharge condensate of side wall.

Refrigeration series of technology
1.standardization
1.1 High-quality steel pipe and welding process standardization; according to the standard tube layout to ensure stable and reliable model system;
1.2 Imports of Italian imports of pipe bending machine the whole bend, a significant reduction in solder joints and welding generated when the pipe oxide, improve system reliability!

2.Pipeline shock and support
2.1 The United States and Tyco on the support of the cooling copper pipe has strict requirements, taking into account the pipeline shock conditions in the cooling pipe to increase the arc and bending the use of special nylon clip fixed way to avoid the circular vibration and temperature changes caused by Pipe deformation and leakage, improve the reliability of the entire refrigeration system.
2.2 No oxidation welding process
As we all know, the cleanliness of the refrigeration system is directly related to the efficiency of the refrigeration system and operating life; the United States and Tyco welding operation using standardized to avoid a large number of pipe oxide pollution when welding!

Control circuit technology
1. Power distribution layout According to the technical department of the distribution assembly plans to install electrical components used internationally renowned brands: Omron, Schneider, Germany phoenix terminals, line code clearly marked.
Selection of the old domestic brand, (Zhujiang cable) to ensure that the quality of the wire; control line minimum 0.75 square RV soft copper wire, all the major load such as motor compressors are based on EC trunking safety current standard trapping trail selection! Compressor cable box cable mouth with sealant processing, to prevent frosting junction box terminal short circuit.
All terminal screws are connected to the standard fixed torque, to ensure reliable fastening to prevent loose ignition and other hidden dangers!

Refrigeration Technology
3D refrigeration system management drawing
Variable Frequency Control Technology of Refrigeration System

In the frequency conversion refrigeration system, even if the power frequency 50HZ is fixed, can change the
frequency through the frequency changer, thus adjusts the compression rotational speed, causes the cold quantity
continuously to change, guarantees the compressor movement load in the test box the actual load to match (namely
test body temperature Increase, the compressor frequency to rise, improve the cooling capacity, on the contrary, the
compressor frequency to reduce and reduce the cooling capacity) greatly saves the unnecessary loss of operation to achieve energy-saving purposes. In the beginning of the test chamber can also run by increasing the frequency of the compressor to improve the capacity of the cooling system to achieve the purpose of rapid cooling.
The chamber adopts frequency conversion refrigeration system, which can precisely control the temperature of the box body, make the temperature of the box body constant, the temperature fluctuation is small, and the suction and discharge pressure of the refrigeration system is stable and the compressor runs stably and reliably. Electronic expansion flow servo.

Refrigeration system technology Other energy - saving technologies
A) The use of PID + PWM principle VRF technology (electronic expansion valve according to the thermal conditions of flow control)
Low-temperature working state, the heater does not participate in the work, through the PID + PWM regulation of the cooling (cooling capacity of the air flow control system); low-temperature working conditions, the use of the principle of PID PID VRF technology (refrigerant flow control) Flow rate and flow direction of the cooling pipe, cold side of the pipeline, heat the next three-way flow pipe to adjust to achieve the work of the temperature is automatically constant, this method in low temperature conditions, the studio can automatically achieve a constant temperature, Low temperature conditions, can achieve a 30% reduction in energy consumption. The technology is based on Danfoss ETS system electronic expansion valve, can be applied to different cooling capacity requirements of the cooling adjustment, both at different cooling rate requirements, to achieve the compressor cooling capacity adjustment.
B) the size of two sets of compressor design technology, according to load conditions automatically start and stop (large series is designed)
The refrigeration unit is equipped with a set of semi-hermetic compressors composed of binary cascade refrigeration system plus a full-density single-stage refrigeration system. Configure the mother; according to the load conditions inside the box and the cooling rate of intelligence to open the different compressor groups, so that the cooling capacity of the box and the compressor output power to achieve the best match, in order to achieve the best operating conditions in the compressor section circle to Extend the service life of the compressor. More importantly, a large set of traditional design compared to the energy-saving effect is very obvious, you can achieve more than 30% of the temperature control. With VRF technology)
