Battery washing test chamber
|
|
Scope of application: Battery washing test box is based on "battery GB GB4141" new standard R & D production, the device for battery or battery pack, hand-held electronic products with lithium-ion battery pack, may be placed in the pocket to carry or use of portable electronic Lithium-ion battery packs for products, other portable electronic products Washing test subjects that can be placed in a pocket with a battery pack, a non-user-replaceable battery / battery pack, etc. are made of steel material, Explosion-proof effect is good
|
|
Specifications Model
|
MBS-XD3124l
|
|
Features
|

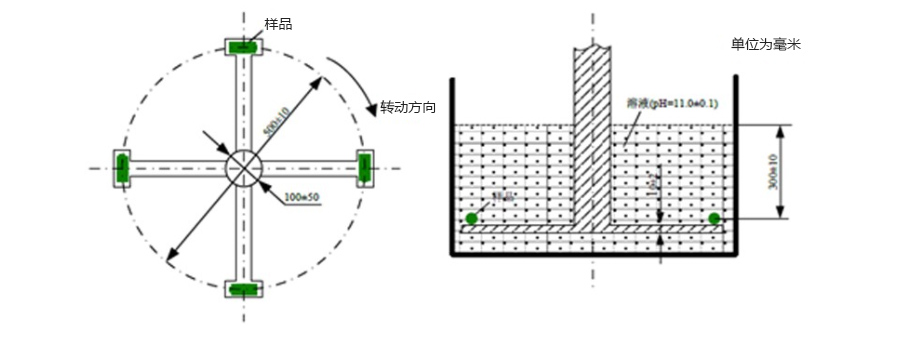

(The pH of 11.0 ± 0.1 solution) was added to the washing drum; the liquid was heated to 45 degrees; the sample battery was soaked in the barrel for 0.5 hours; the turntable was started to rotate (speed For 60r / min)
|
|
High-performance plastic pump head of the pump, according to the set time to alkaline solution from the stainless steel tank to the test barrel, while the plastic material of the pump head will not rust and oxidation, durable
|
|
The test barrel is made of SUS304 # mirror stainless steel, beautiful at the same time acid and alkali; barrel inside and outside the two layers, the middle of polyurethane foam insulation, cold-rolled stainless steel box
|
|
PlJC + touch screen control, the system automatically completed the entire test, worry and save trouble
|
|
Power system provided by the servo motor, with a large torque, speed span, smooth operation and so on
|
|
Temperature control system, the use of Siemens temperature module, PID automatic calculation, high precision control, stable operation
|
|
Protection system
|
The entire test system consists of two parts of the barrel and the outer box, with a strong explosion-proof performance, even if the battery explosion in the test box, it will not cause damage to the test box outside the place
|
|
Drainage system
|
The equipment is equipped with automatic drainage valve at the bottom of the liquid collection box to facilitate the discharge of test water to the outside
|
|
Water is easy to design
|
The top of the tank with a large open cover design, the need for water, the entire lid can be removed, usually can be covered, safe dust
|
|
Removable function design
|
The entire test box is installed at the bottom of the four caster and foot cup, the device can be easily moved to the place where you need to place, the cup can be fixed in the required position of the device
|
|
Humanized operation design
|
The operation of the entire test is completed in the range of one meter to one meter to complete the five, the operator does not squat or deliberately climb can be very comfortable to complete a variety of operations
|
|
Structure part
|
Box
|
The vertical structure is separated from the control section
|
|
Inner box
|
SUS316 # mirror stainless steel
|
|
Outer box
|
Cold - rolled steel spray treatment
|
|
Control System
|
PLC + touch screen control, the system automatically completed the entire test, worry and save trouble
|
|
power system
|
Provided by the servo motor, with a large torque, speed span, smooth operation and so on
|
|
Temperature control system
|
Using Siemens temperature module, PID automatic calculation, high precision control, stable operation
|
|
Protection system
|
The entire test system consists of two parts of the barrel and the outer box, with a strong explosion-proof performance, even if the battery explosion in the test box, it will not cause damage to the test box outside the place
|
|
Drainage system
|
The equipment is equipped with automatic drainage valve at the bottom of the liquid collection box to facilitate the discharge of test water to the outside
|
|
With liquid
|
A solution with a pH of 11. O ± 0.1 can be used (a NaOfl solution with a mass fraction of 0.004%) and the solution heated to (45 ± 2)
|
|
Move and fix
|
Equipped with four caster and foot cup, the device can be easily moved to the place where you need to place, the cup can be fixed in the device need to place the location
|
|
Technical Parameters
|
Test turntable outside diameter
|
500±10mm
|
|
Test the inner cylinder diameter
|
600mm
|
|
Test cylinder depth
|
500mm
|
|
Turntable speed range
|
1-900 revolutions per minute adjustable
|
|
Servo motor power
|
3.50KW
|
|
Heating tube power
|
7.50KW
|
|
Lift power
|
140W
|
|
Pump power
|
120W
|
|
Water temperature range
|
Room temperature to 80 degrees (adjustable)
|
|
Meet the test standards
|
GB3124-2014 Lithium-ion batteries and battery packs for portable electronic products Appendix F Washing test
|
