name
|
Battery safety performance comprehensive test control center
|
|
Specifications Model
|
MBS-ZH200
|
|
Overview
|
The machine has the following operations to control the following test equipment and video surveillance video test process and other functions
|
|
Auxiliary system (optional)
|
Temperature, current, voltage acquisition, fire extinguishing system, salt spray system, salt spray filtration system, safety explosion-proof system, video monitoring system
|
|
control method
|

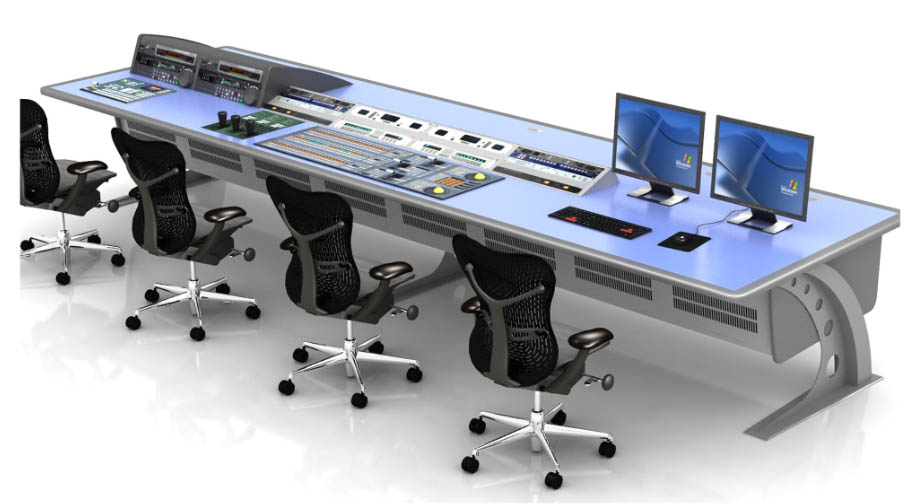

The console is located in front of the equipment, with a distance of two meters from the aisle, channel and console between the beaten with explosion-proof glass, the console through the control cable to connect equipment to achieve the purpose of control and viewing
|
|
safety protection
|
Overvoltage, overload, over current, over temperature, leakage protection, smoke alarm, test abnormal alarm
|
|
|
control box
|
The control box is separate from the test chamber to ensure the safety of the test personnel
|
|
Data acquisition module
|
Remote isolation independent collection, multi-channel voltage, electro-hydraulic, current, temperature acquisition channel, to ensure accurate data collection (optional)
|
|
Number of channels
|
2 channels, 4 channels, 8 channels, a variety of acquisition systems (optional)
|
|
Camera monitoring system
|
Detection area with high-definition camera monitoring system, remote control, and has an explosion-proof function (optional)
|
|
Equipment type
|
(Can be selected according to demand)
|
Thermal shock chamber (hot)
|
|
Battery burning test machine
|
|
Temperature control type battery short circuit test chamber
|
|
Heavy impact test chamber
|
|
Acupuncture test chamber
|
|
Extrusion test chamber
|
|
Battery drop test chamber
|
|
High - altitude low - pressure test chamber
|
GB31241 battery integrated test and control center
