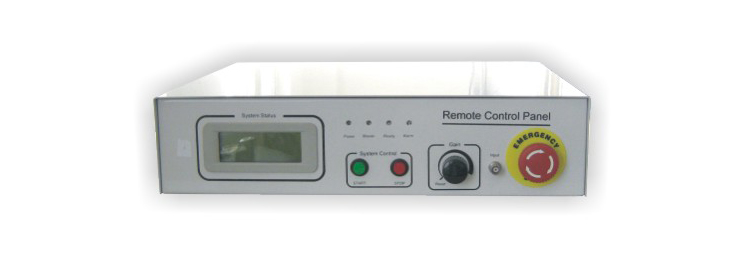

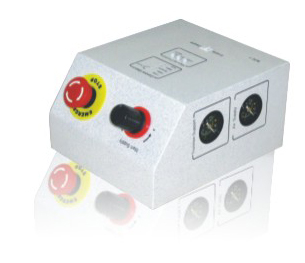

Remote control panel
● can provide the choice of remote control panel, with all the power amplifier logic control unit of the same function, remote control distance of up to 1000 meters.
● communicate with the amplifier logic control unit via RS485 interface.
● With the amplifier input analog signal long-distance transmission drive capacity, the maximum transmission distance of up to 1000 meters.
● The same amplifier protection function as the amplifier logic control unit.
Center Zero Servo Controller (OPCS)
Electric vibration table balancing device referred to as automatic alignment device (OPCS). Mainly through the non-contact sensor to detect the center of the electric vibrating platform moving coil, and by automatically adjusting the air spring air volume to maintain the vibration of the center of the table, so that the system in the static and dynamic state dynamic state dynamic circle.
● Static automatic adjustment center position
● Keep the moving center position dynamically
● When controlling the platform, the vacuum pump is the best

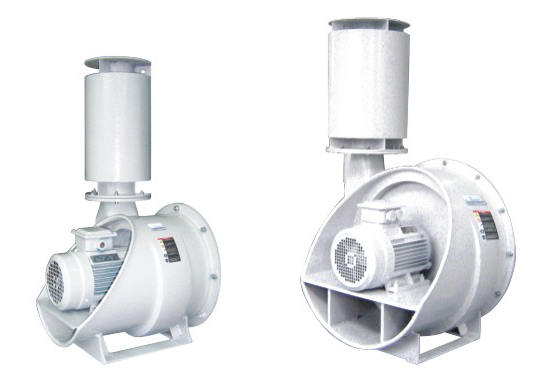

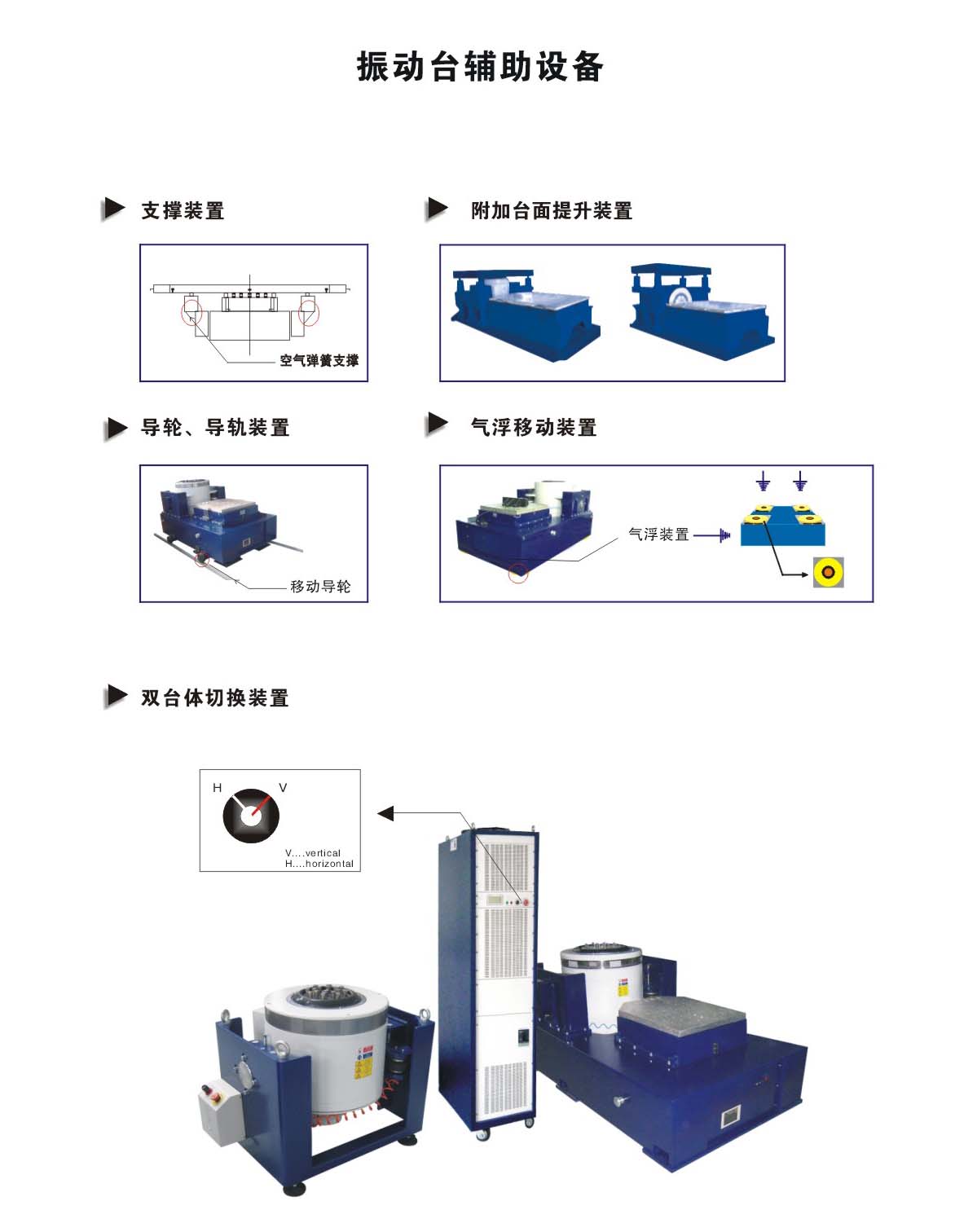

Shaking table auxiliary equipment
