L series vibration test system

Product Usage
L series vibration test system is ideal for small electronic components, automotive parts, portable equipment, storage equipment, connectors and other screening test the best equipment.
L series vibration test system designed to meet the MlL, ASTM, lEC, lSO, BS, JlS and other military standards and other international test standards.
L series of vibration test system with a large diameter of the moving coil, equipped with high-intensity guide, which can be U configuration of a variety of additional table, indigo for a variety of test pieces, and get a good vibration transmission rate.
L series of vibration test system can easily complete the small parts of the test requirements, including transport vibration simulation test, vibration climate comprehensive test U earthquake simulation test.

Product Features

System performance
Test load of up to 300kg (660 pounds)
The system is simple to operate
Exceptional random performance, 3 sigma rated peak current conforms to ISO standard
Dynamic diameter range 150 mm -200 mm (5.9 inches to 7.9 inches)
Continuous displacement up to 51 mm (2 inches)
The test frequency is up to 4,500 Hz
Compatible with any vibration controller

Shaking table
Air spring load support
Rugged trunnion design with bearing orientation
Built-in airbag or rubber vibration isolator to reduce ground dynamic vibration
High strength without skeleton dynamic design, with random high acceleration performance
Rocker suspension system and roller guide, with a high anti-eccentric moment
Taiwan body with high efficiency and low noise fan cooling, configuration environment test box to use more convenient
Optional integrated, independent horizontal slide

Power amplifier
High Performance MPA100 Series Power Amplifier
Modular design of power amplifier
System boot self-test function
Single power module up to 12KVA
High modulation switching frequency
High conversion efficiency (greater than 92%)
High signal to noise ratio
Low harmonic distortion
Independent power module running indicator
Logic unit using CPU control, LCD display system running data and status
High current components are fully enclosed fuse protection design
A few laps of the system interlock protection device
Through the European "TUV Rheinland" CE certification

Accessory equipment
Dynamic and static dynamic centering system
Rotary system of platform worm
Integrated environmental test box countertop insulation device
Power amplifier remote control panel, with all the logic control of the functional characteristics

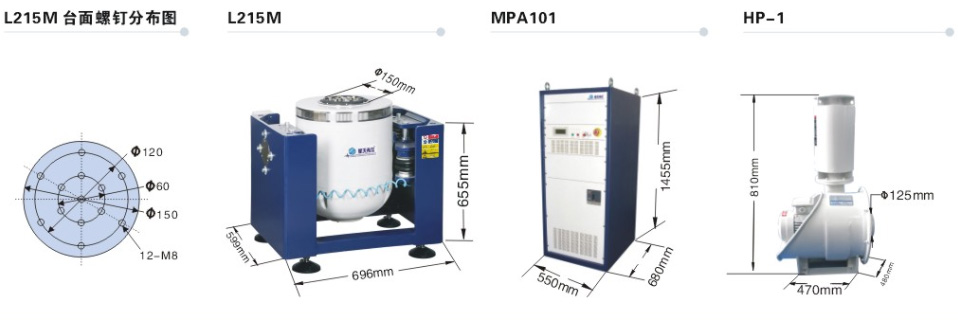

L215M platform technical parameters

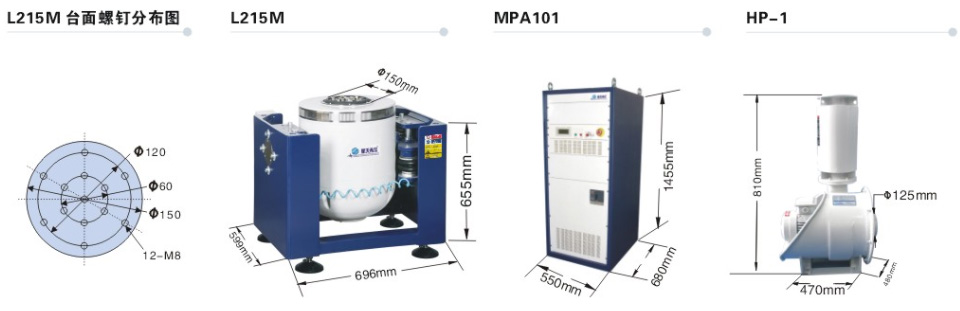

L315M platform technical parameters

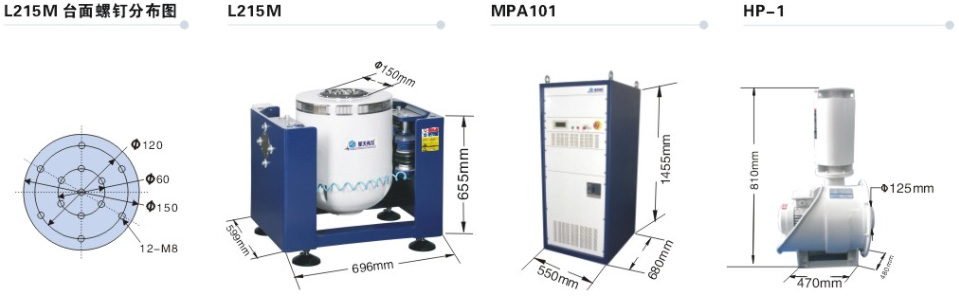

L620M Taiwan technical parameters
