GT / BT series multi-axial horizontal slide

Product Usage
The vibrating table is equipped with a horizontal slide to achieve a three-way vibration test. Can also be equipped with table temperature, wet chamber to form a complex environmental test system.
GT, BT system Horizontal slide can be used with any vibration table, for the horizontal test to provide the best test platform. According to the concept of integrated design and manufacture of steel structure base for the electric shaking table and horizontal sliding platform calibration provides a solid platform all horizontal sliding table design selection of finished natural granite and high quality guide bearings, which can meet the different Application requirements. The reinforced welded body has a good countervailing mass and damping effect. Built-in vibration isolation system can reduce the vibration to the ground to prevent the purpose of interference with the test equipment.
With a turbo-swivel or sprocket rotation system, a person can easily rotate the vibrating table body with a horizontal slide. The use of mechanical limit device to ensure that the horizontal slide and shaking table connection. Available in various models of horizontal skateboards from 300mm * 300mm (for small shaking tables) to 2m x 2m skateboards for large specimen testing. Different types of restricted bearings can meet different application requirements for system operation.
Skateboard area, thickness determines the quality of the active system, will also affect the upper limit of the table frequency; the user can be customized.
The horizontal sliding table is divided into inclined connection and vertical connection according to the connection method (according to the user's requirement). The guide type of the GT series is guided by the guide mode, and the BT series of static pressure bearing guide mode.

Features
Magnesium Taiwan gold horizontal table;
Low support structure, the whole system vibration (standard 2.5Hz);
Reinforced, welded steel structure design, high quality and thrust ratio;
Designed for comprehensive environmental testing;
An independent horizontal slide table can be used with any shaking table (existing or new).

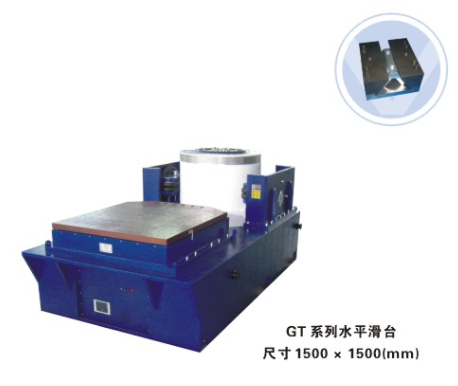

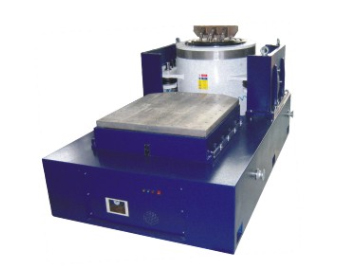

GT series guided oil film horizontal sliding table

GT series-oriented oil film horizontal slide design with relatively easy to guide v-groove bearings, and magnesium table with a horizontal plate.
V-type rail horizontal slide by the skateboard, v-type rails, connectors, natural granite flat, horizontal sliding base, built-in static pressure oil source.
Built-in pump, compact structure, easy to operate. Depending on the size of the slide, the number of v-rails varies. This type of v-rail has a high anti-overturning moment. The hydrostatic oil is spread through the holes in the granite slabs under the entire horizontal skateboard. The oil film forms a low friction water slide, and proper damping is used to suppress resonance, overturning moment and overturning moment.

Low pressure hydraulic pump
With oil filter tank
V-groove guide bearings and dynamic-guide system to limit the deflection
Cost-effective test method

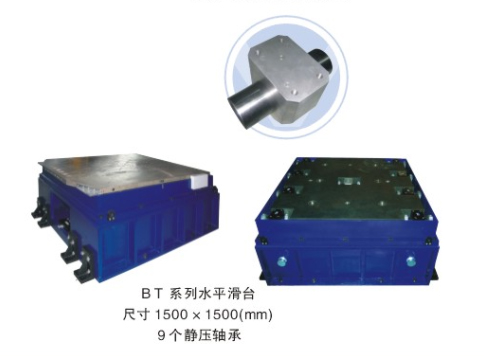

BT series of horizontal slide

BT series of horizontal slide design has a high overturning moment and lateral restrictions. This design concept sets the standard horizontal slide device and 3000 psi (PsI) hydrostatic bearings with high dynamic torque limits while maintaining pilot film damping characteristics.
Hydrostatic bearing horizontal sliding table by the skateboard, hydrostatic bearings, connectors, natural granite flat, horizontal table base, independent of the static pressure source.
Hydrostatic bearings provide higher anti-overturning moments for testing large load specimens. The more the number of hydrostatic bearings, the greater the anti-overturning moment.
The use of hydrostatic bearing limit torque, the system can be U high center of gravity, the weight of the larger product test
Horizontal movement is limited to frequencies up to 2000 Hz, usually below 10% of the input, except for resonance points 3000(Psl) hydraulic power supply.
Hydrostatic journal bearings limit high deflection, roll and rollover moments
Pressure interlocking device
Oil tanker
T-type oil film bearing (optional)

GT / BT series multi-axial horizontal slide

1) Slide screw standard cloth hole
Working area less than 600mm × 600mm, moving ring hole plus 80mm × 80mm grid, special cloth hole requires special order requirements
Working area is greater than 600mm × 600mm, moving ring hole plus 100mm × 100mm grid, special cloth hole requires special order requirements
2) mentioned here for the magnesium Taiwan gold skateboard index, aluminum alloy gold material requirements please contact

GT series of major technical indicators

BT series of major technical indicators
